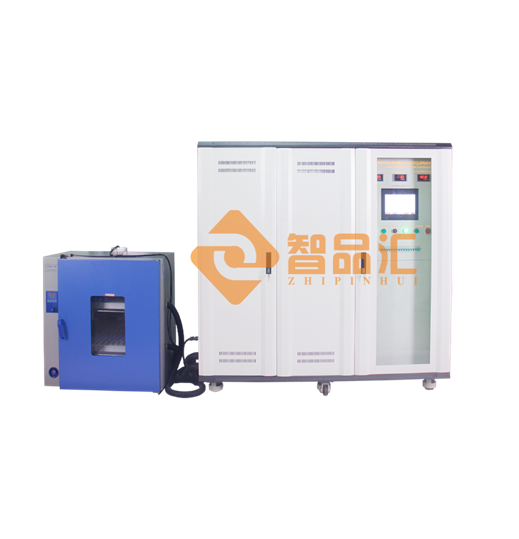

What are the technical requirements for capacitor pulse durability test bench?
The equipment is designed according to IEC60384-14 and 4.14 of GB6346.14-2015 and is controlled by a microcomputer. What are the technical requirements for the capacitor pulse durability test bench? Let’s see how Guangzhou Zhipinhui Electronic Technology introduces it.
1. Capacitance range: Capacitance does not exceed 12μF Rated voltage ≤ 500V
2. Test voltage: AC 100~800V continuously adjustable, digital display accuracy ±1.5% FS
3. 1000V pulse high voltage: 100~1000V continuously adjustable, display accuracy ±1.5%
Duration: 0.1s; Accuracy: ≤±10%
4. Pulse interval time: 5~99 minutes can be set
5. Pulse mode: 10 continuous individual pulses, pulse high voltage can be canceled, complete continuous endurance mode
6. Test time: 0~9999.9H power off retention, automatic discharge of capacitor after test completion
