- 一. Overview

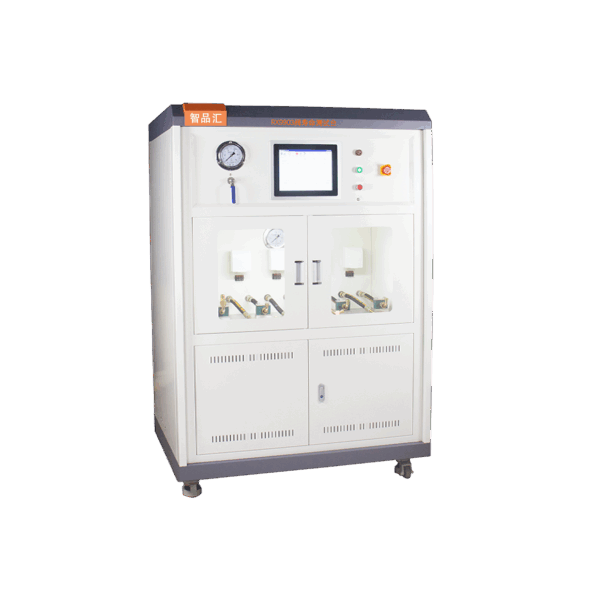

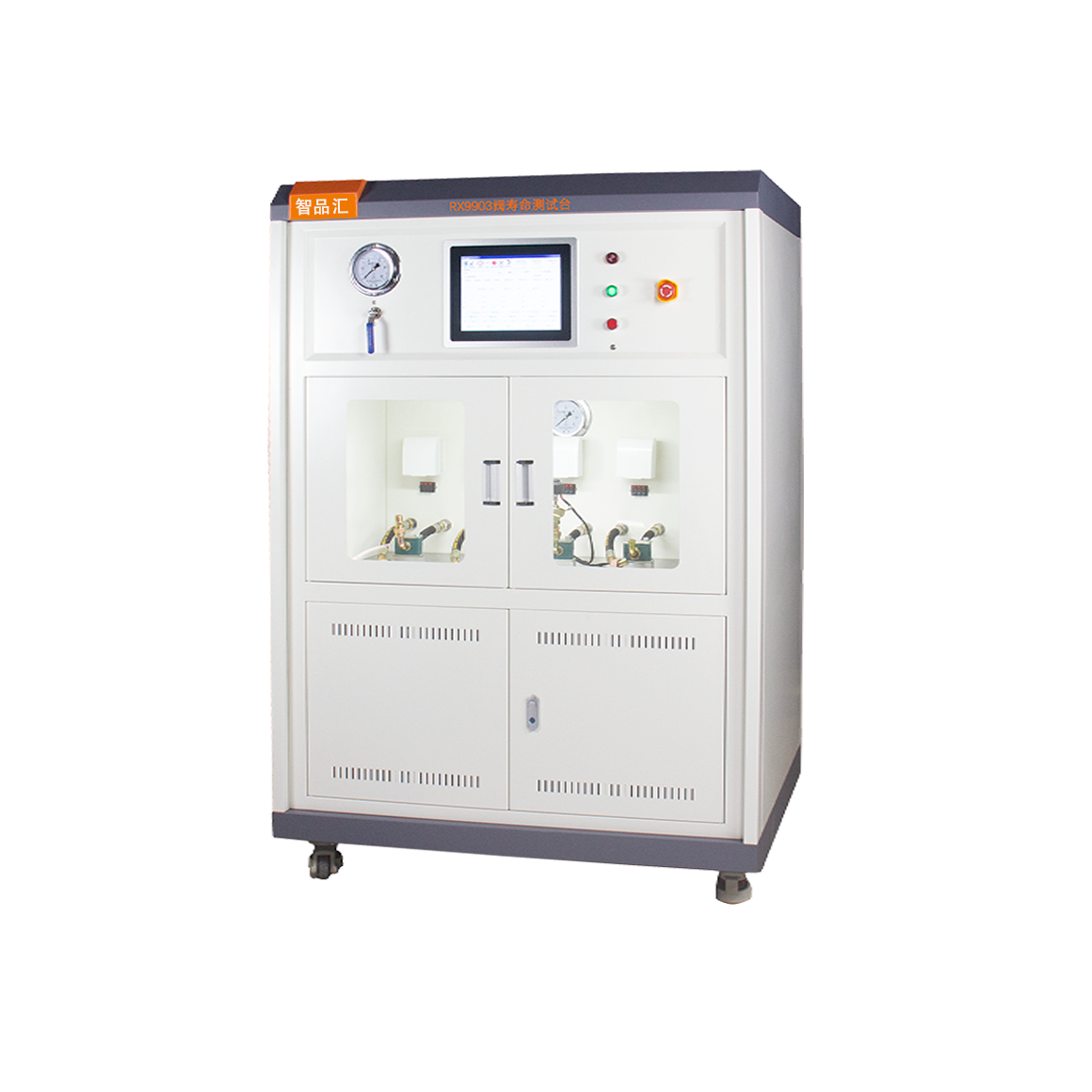

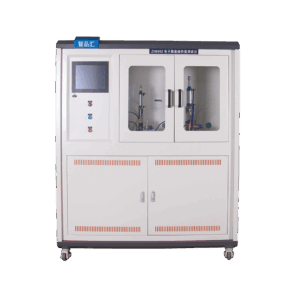

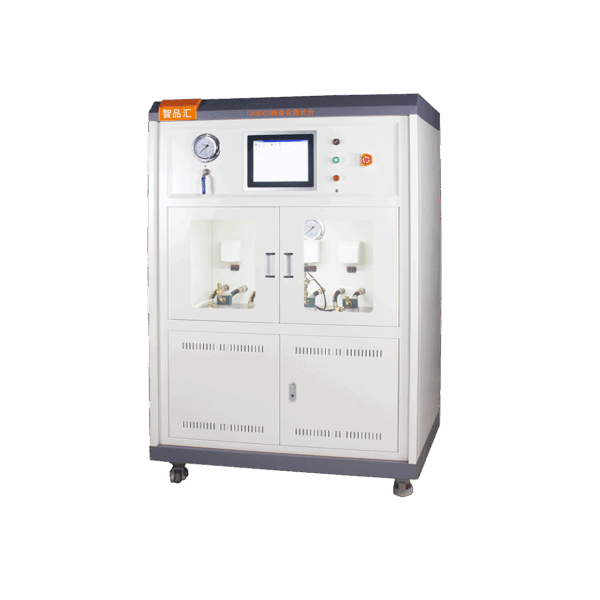

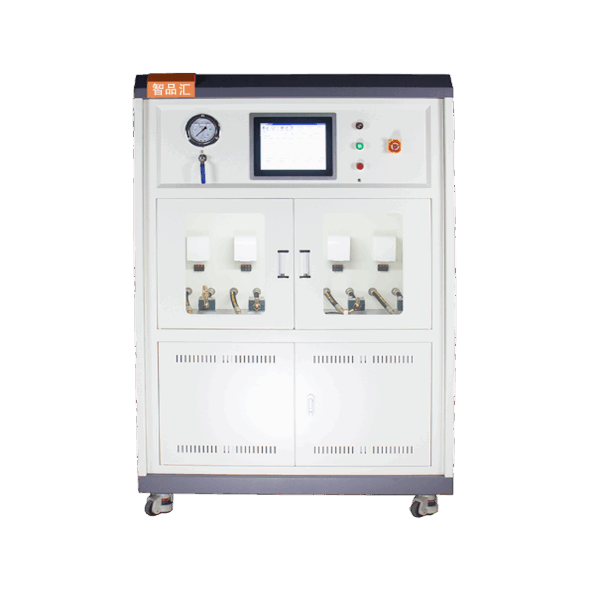

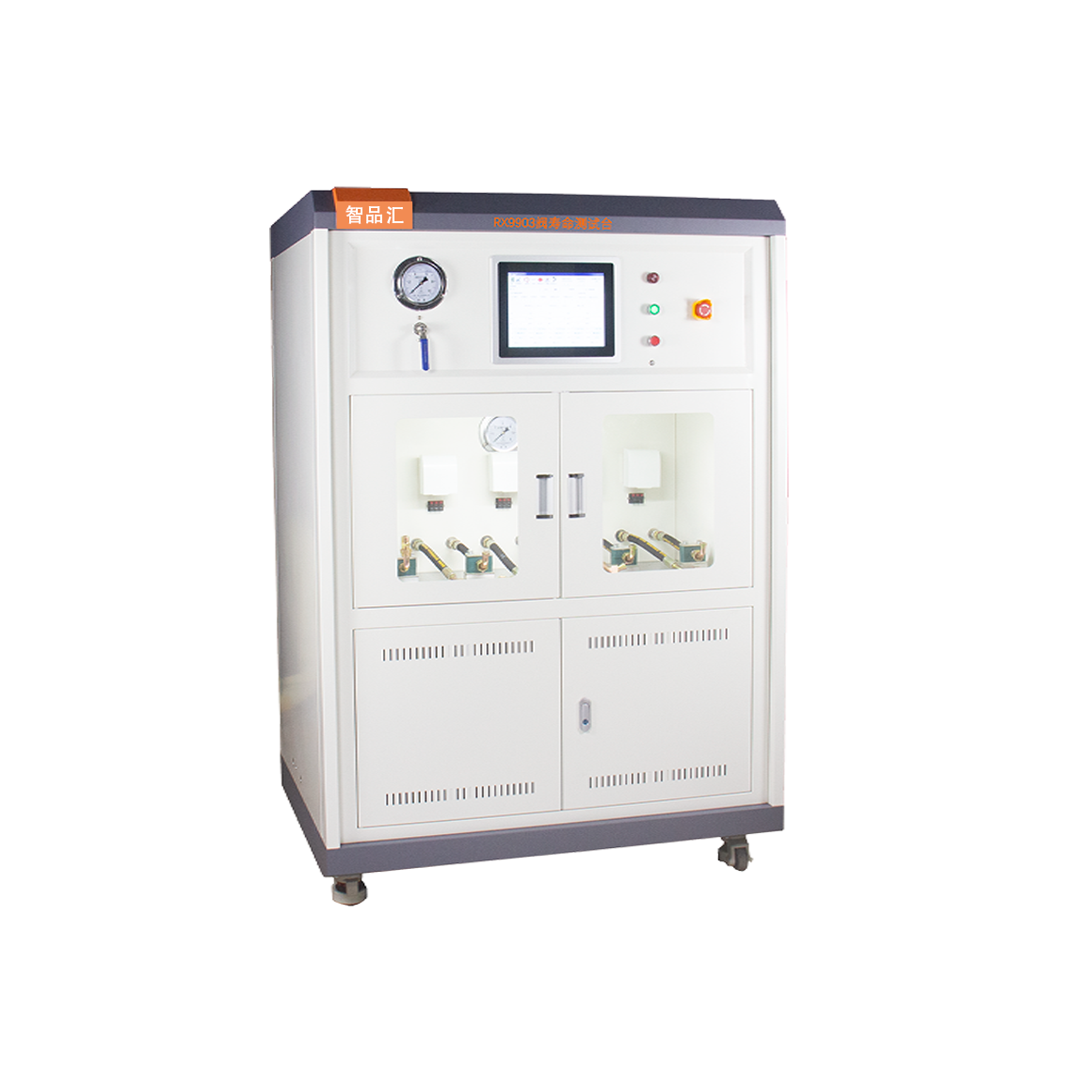

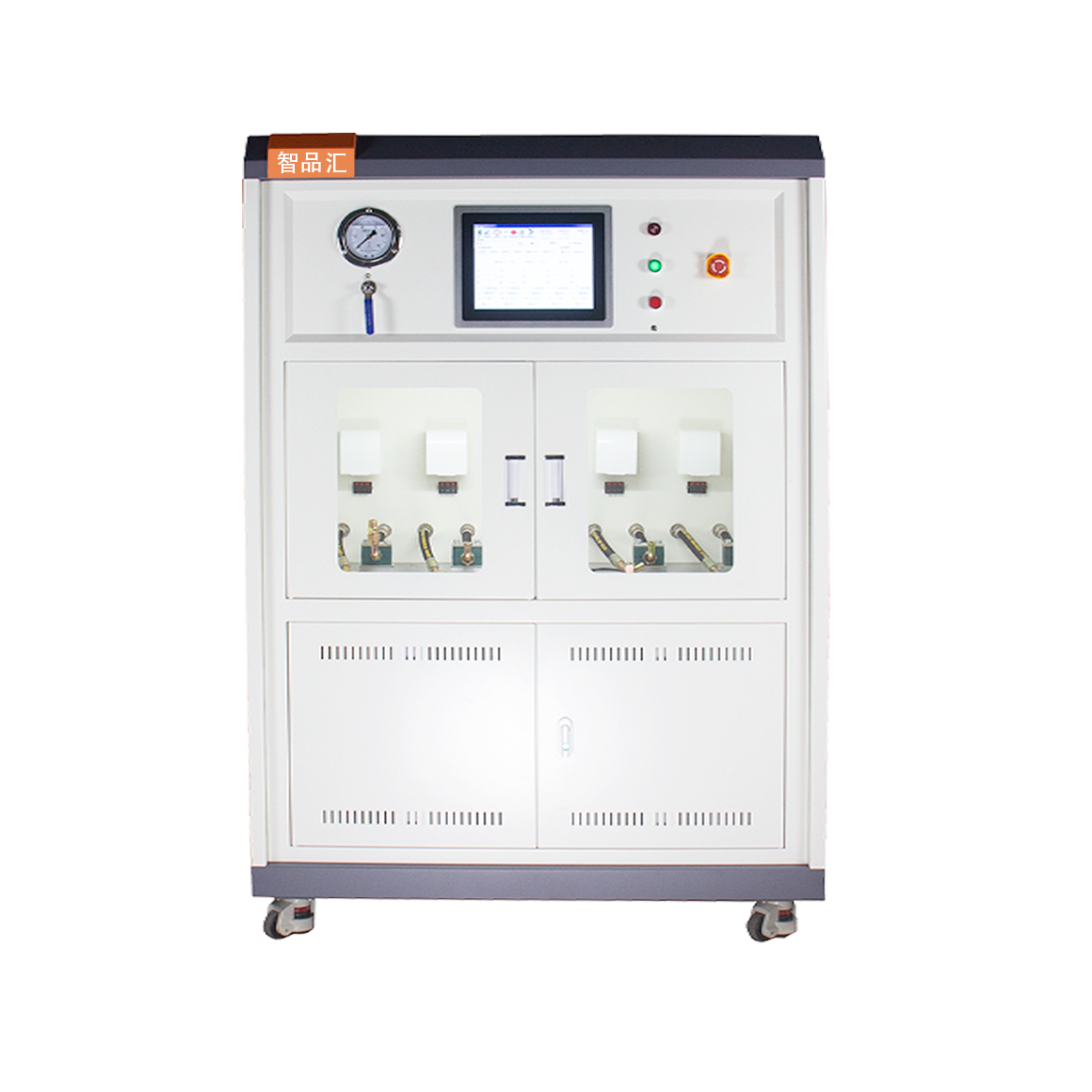

This equipment is suitable for the endurance life test of electronic expansion valves. The equipment is controlled by industrial computers + PLC as the main control center. The PC program is responsible for data processing and logic control. It is easy to operate and flexible to adjust. The system can memorize, record, store and display test results. The equipment system can perform action life tests on the electronic expansion valve under conditions such as the maximum opening degree of the open valve, the maximum opening degree of the closed valve, and the excitation speed. It is an ideal auxiliary testing equipment for home appliance manufacturers.
- 二. Technical parameters
2.1. Number of test stations: 5. The electronic expansion valve can be tested by replacing the test tooling
2.2. Electronic expansion valve test:
①Fix the expansion valve on the life test bench and drive it with a set voltage (such as DC12V), a specified excitation mode, and a set frequency (such as 83PPS).
②The inlet (side pipe) pressure is 1.0MPa, and the outlet (straight pipe) is connected to the atmosphere; 0←→500 is a cycle, and the total number of openings and closings is set (such as 100,000 times). Use nitrogen or clean compressed air, gas source pressure ≥4.5MPA;
Test pressure 1～3.7MPa manually adjustable.
Remarks: Supports opening and closing up to 9.99 million times, the purpose is to find the maximum life of the electronic expansion valve.
③. Failure judgment: Read the pressure through the pressure sensor, set the full closing pressure and valve opening pressure in the software to detect the change of intake pressure. When the intake pressure exceeds the set value, the system alarm prompts the failure of the test piece and records the current number of operations and other parameters.
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer’s location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers’ difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
