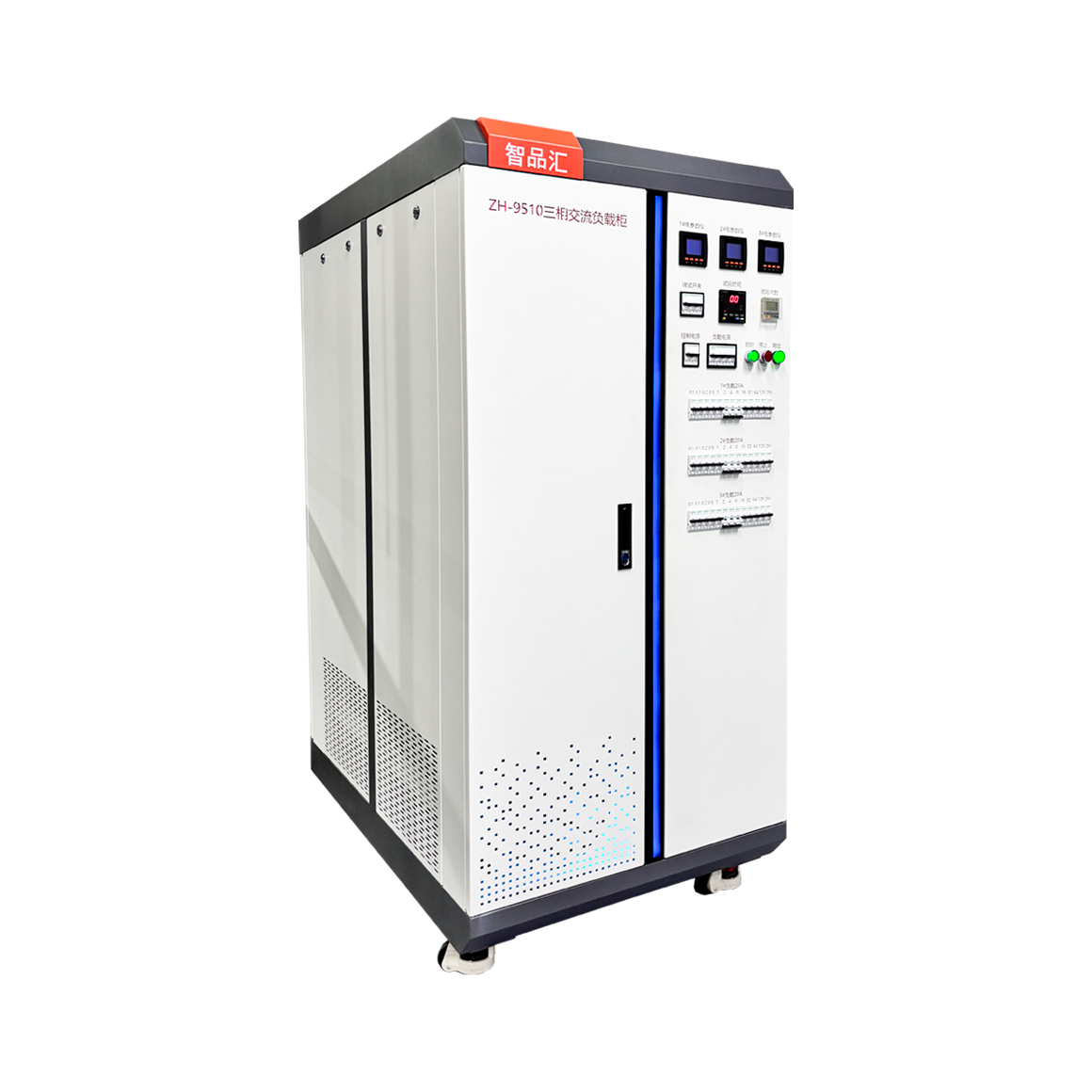

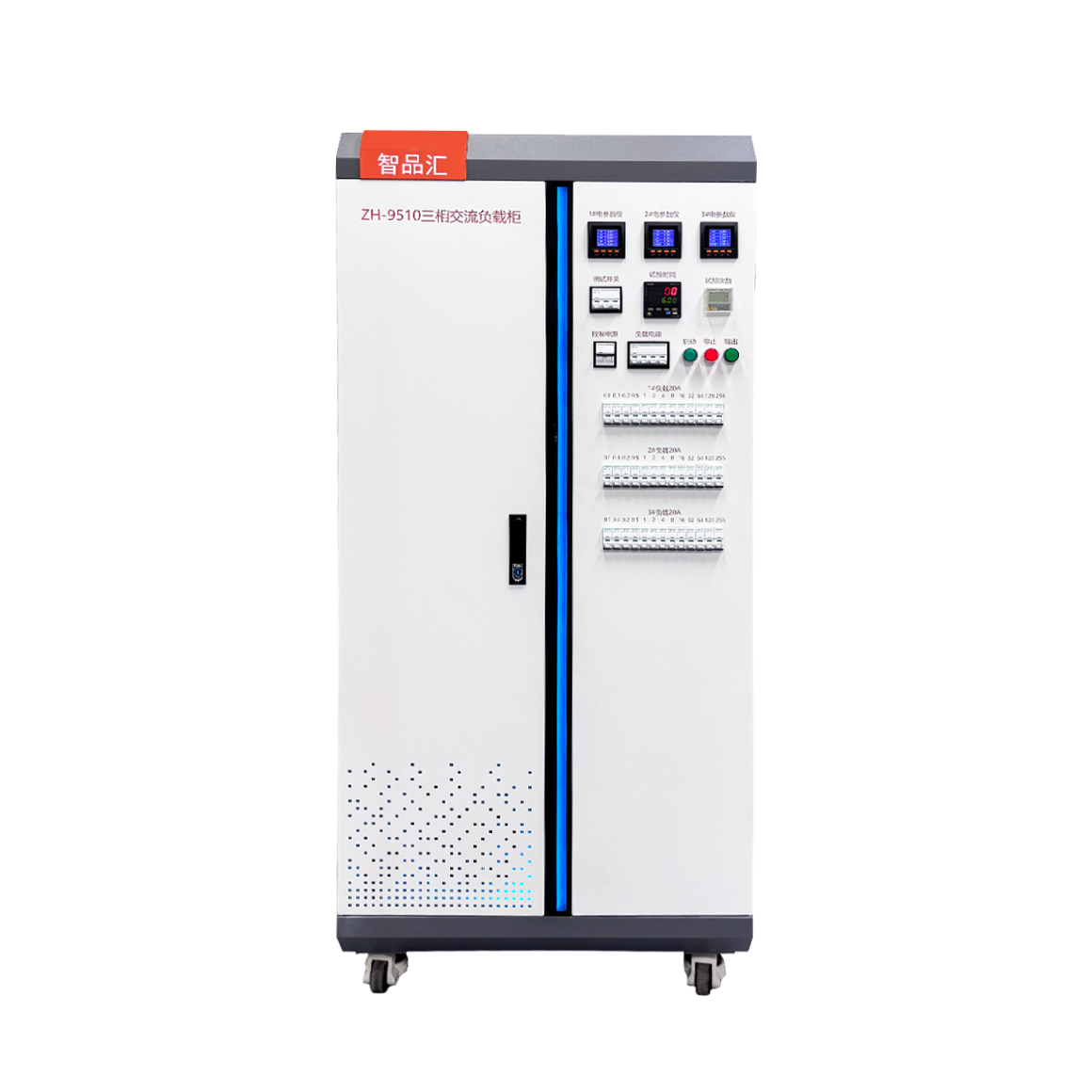

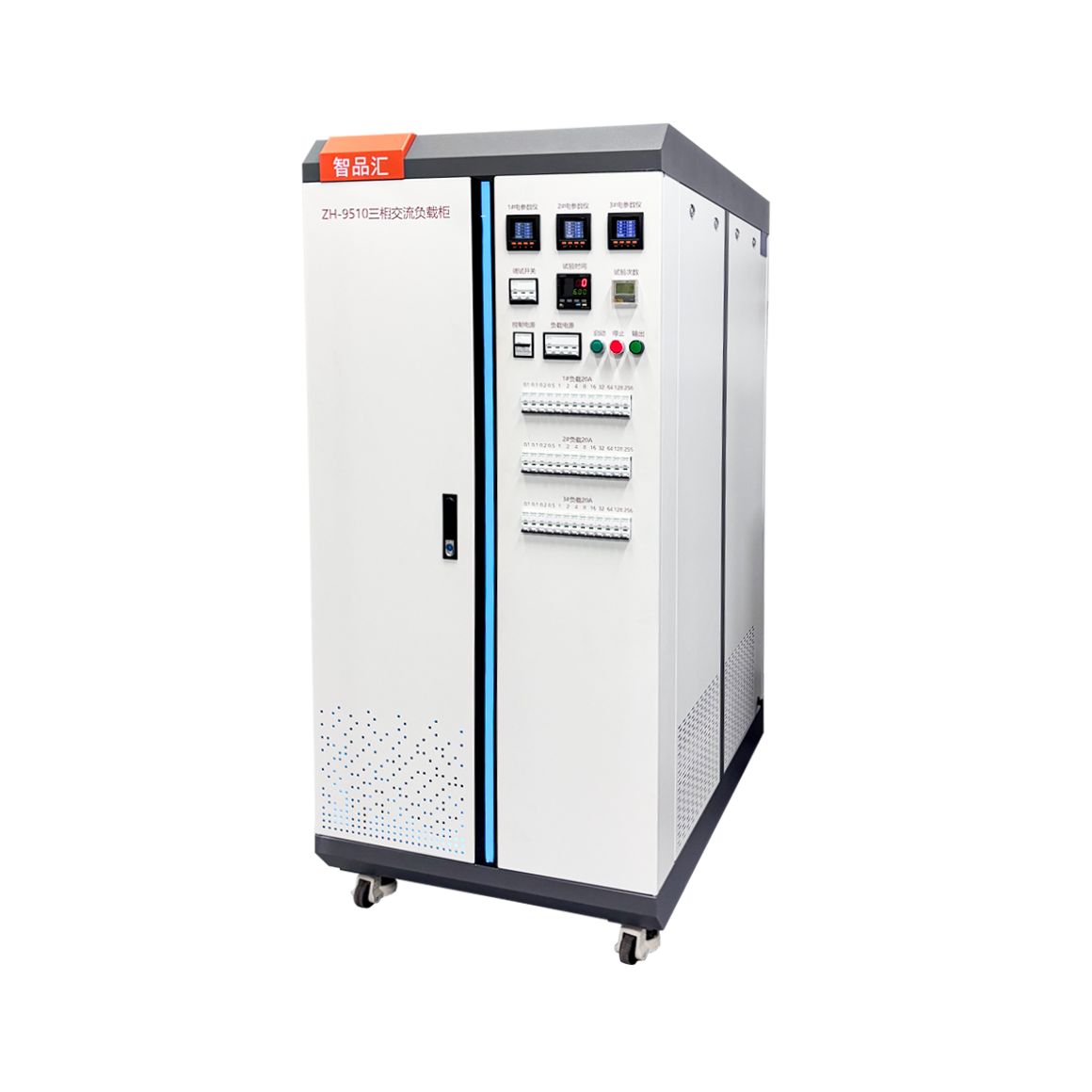

ZH9510Resistive load test cabinet
This load complies with the resistive and inductive loads specified in GB10963, GB9816, GB2099, GB15092, and IEC61058. It can be used not only for overload and life tests on switches, relays, and contactors, but also for testing other similar electrical devices such as transformers, fuses, and plugs and sockets.
Power Load Section
1. Input Power: 380V/15kVA
2. Output Power: 0-280V (adjustable)
3. Output Current: 0-20A per station, 0.01A resolution (adjustable)
4. Number of Stations: 3
5. Control Method: Pushbutton + Meter
6. Test Time: Configurable from 0 to 99,999 seconds, with either a long-on or cycled on/off setting.
7. Test times: Configurable from 0 to 999999 times;
8. Frame structure: High-end integrated chassis, sealed steel plate, painted exterior;
9. Adjustment method: Air switch toggle switch
10. Protection: Overload and leakage protection, all conductive wiring is insulated;
11. Output terminals are reliably connected when needed, and reliability is not affected by repeated disassembly and assembly.
The load cabinet is self-contained, allowing for subsequent expansion of other current-carrying products with additional fixture test benches for temperature rise and electrical life testing.
12. The load cabinet is equipped with universal casters for mobility.
13. Equipment safety: All metal parts are reliably grounded, and wiring has adequate insulation distances.
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer’s location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers’ difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
