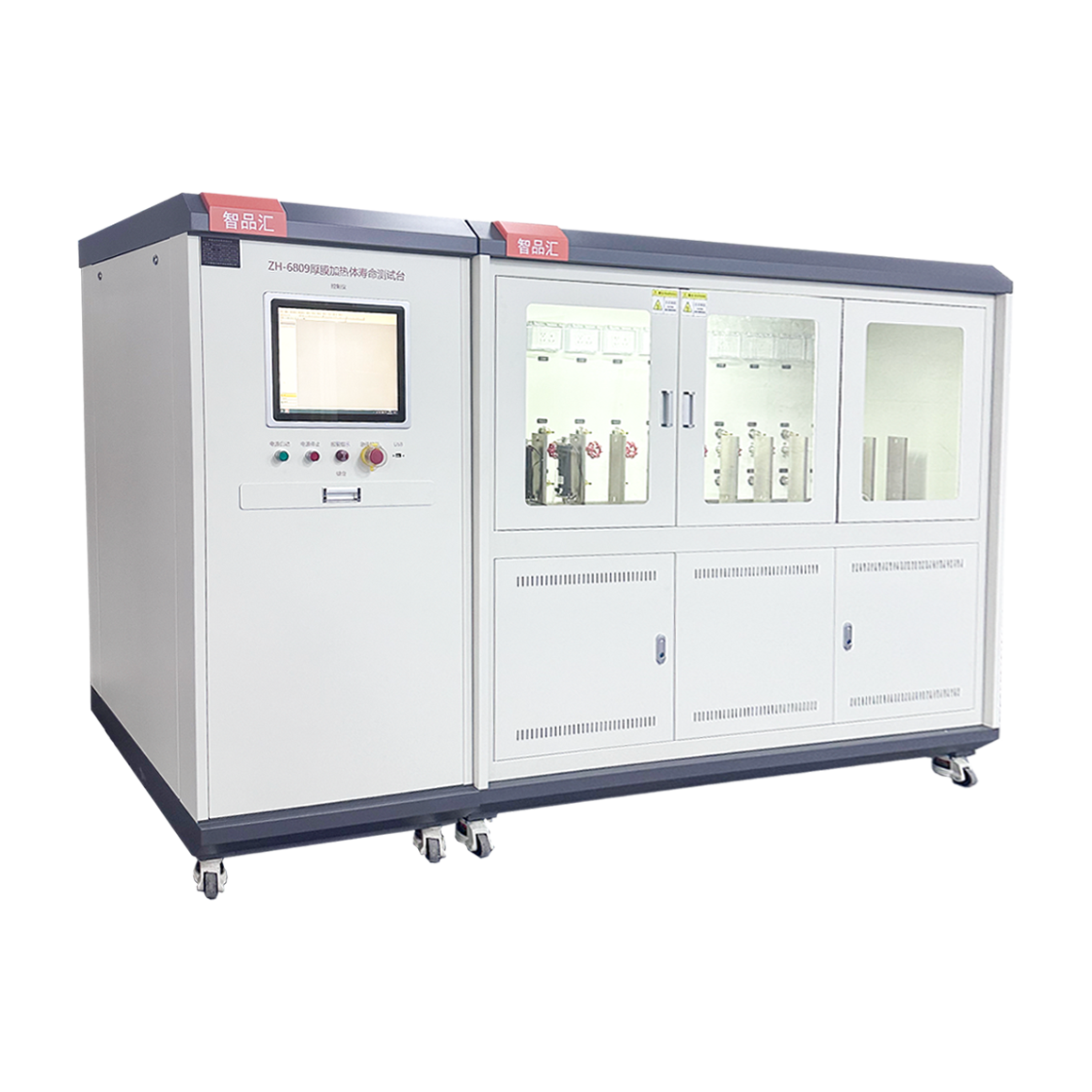

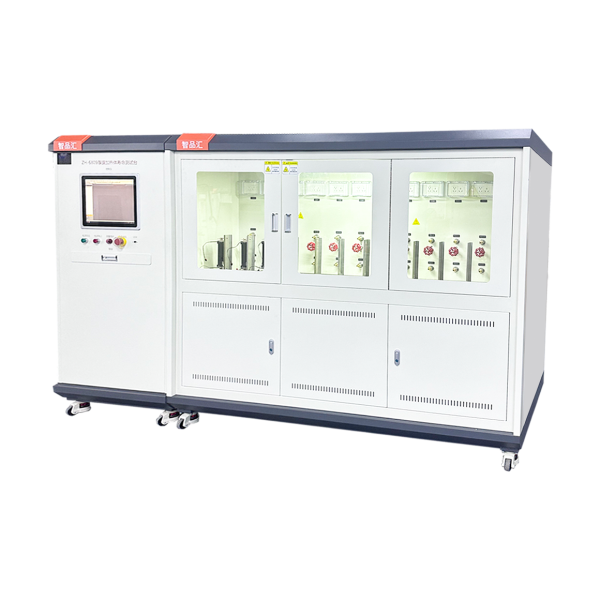

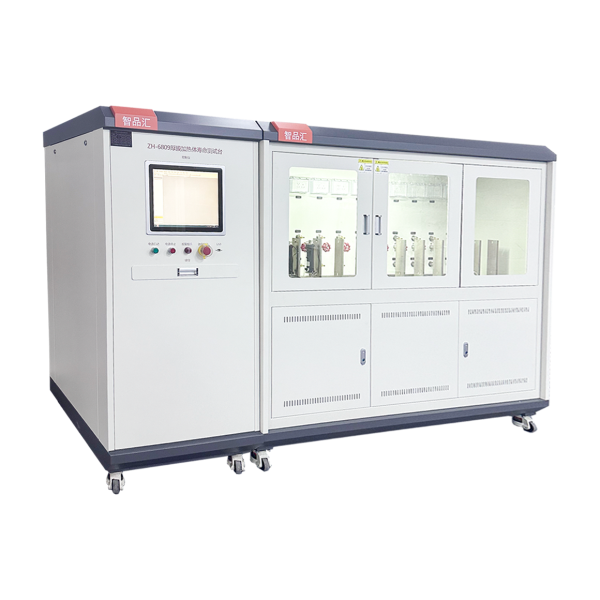

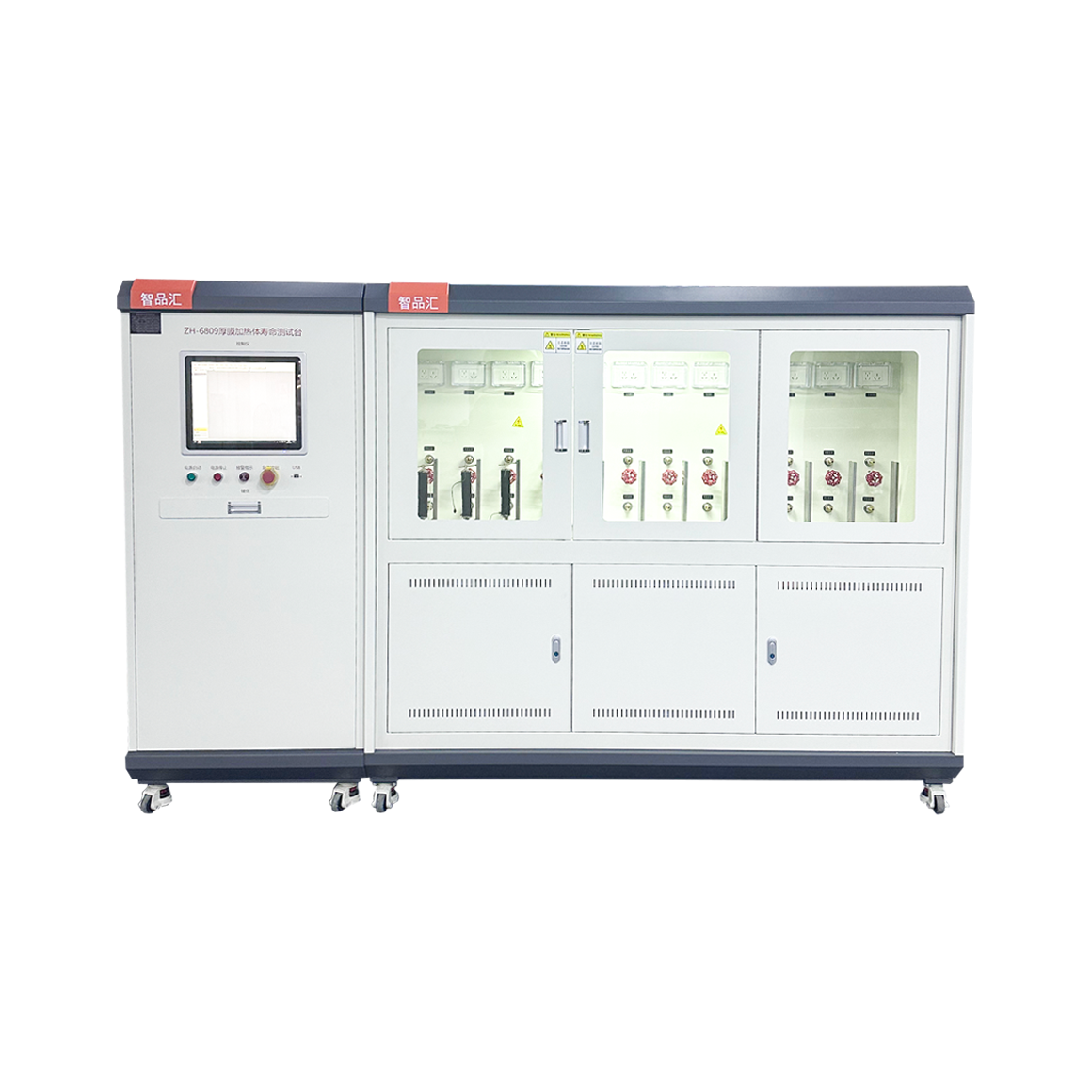

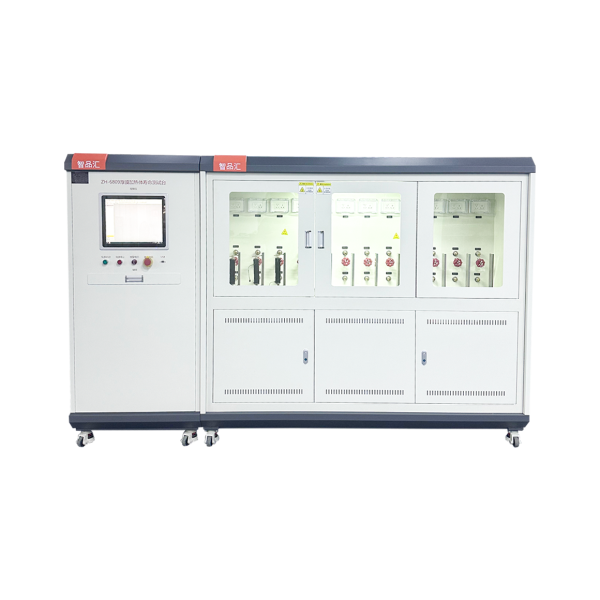

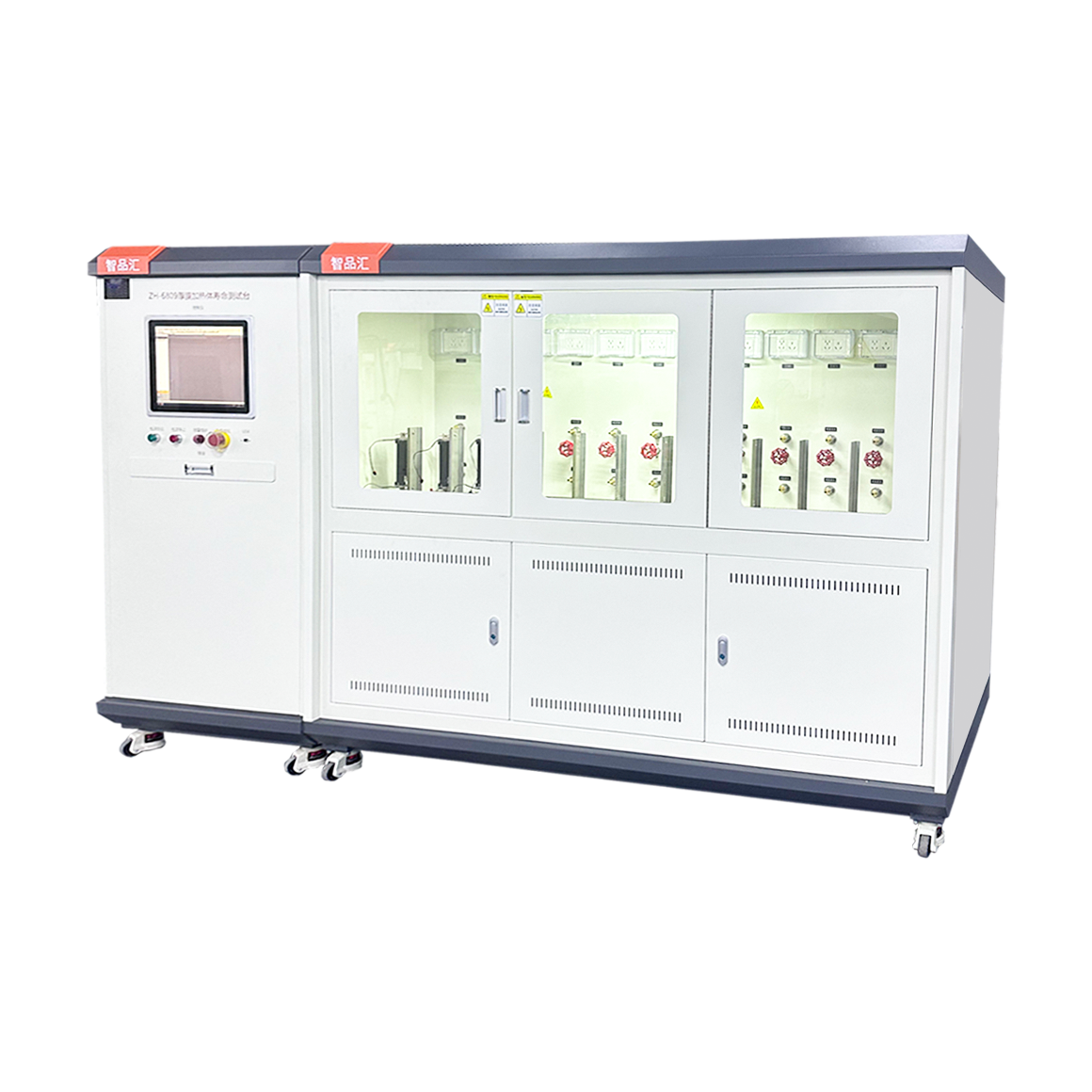

Thick film heating element life test bench

Thick Film Heater Life Test Bench (12 stations)

1. Basic requirements: suitable for the durability test of hot thick film at the speed of pipeline machines and commercial machines;
2. Equipment function: [Meet QHSW J0503 004-2021 “Thick film heating for water purifiers and drinking water treatment devices for similar purposes

In accordance with the technical requirements of the relevant regulations, the durability test of the pipeline machine and commercial machine speed hot thick film.

3. Test content: Mainly used for fast-heating thick film durability test;
4. Technical Parameters

4.1 Stations: 12 Stations;

4.2 Inlet water temperature: 25°C±5°C, use air-cooled constant temperature unit;

4.3 Water supply pressure: 0.05~0.4MPa, adjustable;

4.4 Inlet water pressure sensor, sensor range: 0~0.6MPa, brand requirements: GE; Accuracy requirements ± 0.2%F.S

4.5 Output water flow rate：≥50L/min

4.6 The outlet temperature sensor of each station :(0-120)°C, and the accuracy is ±0.5%F.S

4.7 Each station has the function of collecting current, voltage and power, and will alarm when the power is less than the set value.

4.8 Outlet flow sensor per station: 0.2-3L/min, accuracy ±1%F.S;

4.9 Power supply voltage: 110~250V adjustable;

4.10 Turn-on time: 0-9999s adjustable.

4.11 Disconnect time: 0-9999s adjustable.

4.12 Number of tests: 0-999999 times adjustable.

5. Comprehensive performance of the equipment

5.1 Test Environment:

5.1.1 Power supply: a single station can meet the power demand of 4KW;

5.1.2 Equipment power supply: 1 10A and 16A sockets and reserved terminals for each station, connected to adjustable transformers;

5.1.3 Drain outlet: directly discharged to the floor drain;

5.2 Control: The switch that uses the contactor for power supply, the voltage is set by the adjustable transformer, and the operator manually installs the product

After the product is on the equipment, click the test, automatically open the air control valve, and start the relay to pass the tap water into the instant heat pipe

Electrical, the outlet is equipped with a flow sensor and a temperature sensor to detect whether there is a water flow and the temperature of the water outlet, if not

If there is a water flow, the test will be stopped and alarmed, and the water will be discharged directly, and the test will be automatically stopped when the test time is up, and the alarm will be given.

5.4 Console: Using PLC control, the number of tests and power range are set on the computer, and the interface displays the cumulative number of tests and the current one

information such as operating status;

5.5 Safety protection: The equipment has the functions of leakage and overload protection.

5.6 The equipment is equipped with pure water outlets, and the pure water is supplied by the water supply laboratory, and Party B is responsible for the total pure water point of each laboratory

secondary distribution access to pure water; The high-temperature water after the test is discharged directly to the wastewater pipe and is not recycled.

6. Other Requirements:

6.1 The material of the equipment pipe is made of stainless steel 304 material
