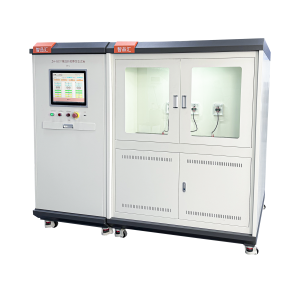

Static pressure rupture test system for water purifier (4 stations)
- Basic Requirements
1.1 It is suitable for static pressure test and rupture test of the whole water purification equipment.
1.2 A total of 1 set of equipment, 4 small computers or 1 large commercial machine are tested at the same time;
- Device Capabilities
2.1 Meet the requirements of QB/T 4144-2010 “Reverse osmosis Water Purifier for Household and Similar Purposes”, QB/T 4143 “Household and Similar Uses”.
Water Filtration Purifier”, QB/T 4698-2014 “Household and Similar Water Purifiers” and other standards specified in the technical requirements.
- Test content
3.1 The static pressure test and rupture test of the whole water purification equipment can be completed at the same station, which can meet the needs of household machines and water purification equipment
The filter elements are tested together;
3.2 Test Function:
3.2.1 Static pressure test of the whole machine;
3.2.2 Burst test of the whole machine;
- Technical Parameters
4.1 stations: 1 set of 4 stations;
4.2 Water tank: 1 x 200L water tank, material 304;
4.3 Test pressure: 0.1-6MPa;
4.4 Boost rate： 0.1-0.4MPa/s；
4.5 Pressure sensor: 0-8MPa accuracy±0.2%F.S;
- Comprehensive performance of the equipment
5.1 Static pressure test: After filling the test cavity with water, use the gas-liquid booster cylinder to compress the water to the set test pressure and increase the pressure
The speed is adjustable between 0.1-0.4MPa/s, and then the output pressure is kept within the test pressure range until the time for testing is reached
Automatic pressure relief after the rear;
5.2 Rupture test: After filling the test cavity with water, use the gas-liquid booster cylinder to compress the water to the set test pressure and increase the pressure
The speed is adjustable between 0.1-0.4MPa/s, and then the output pressure is maintained within the test pressure range for 15 seconds
dynamic pressure relief;
5.3 Console: Use PLC to control the output of pressure, and set the pressure, maintenance time and pressure rate of the test on the industrial computer
degree, the interface displays the current test pressure, maintenance time, boost speed and current running status and other information;
5.4 Safety protection: the water tank has overflow, leakage and low water level, and has the function of overpressure alarm protection, etc.;
- Other Requirements
6.1 The equipment pipeline is made of stainless steel 304;
