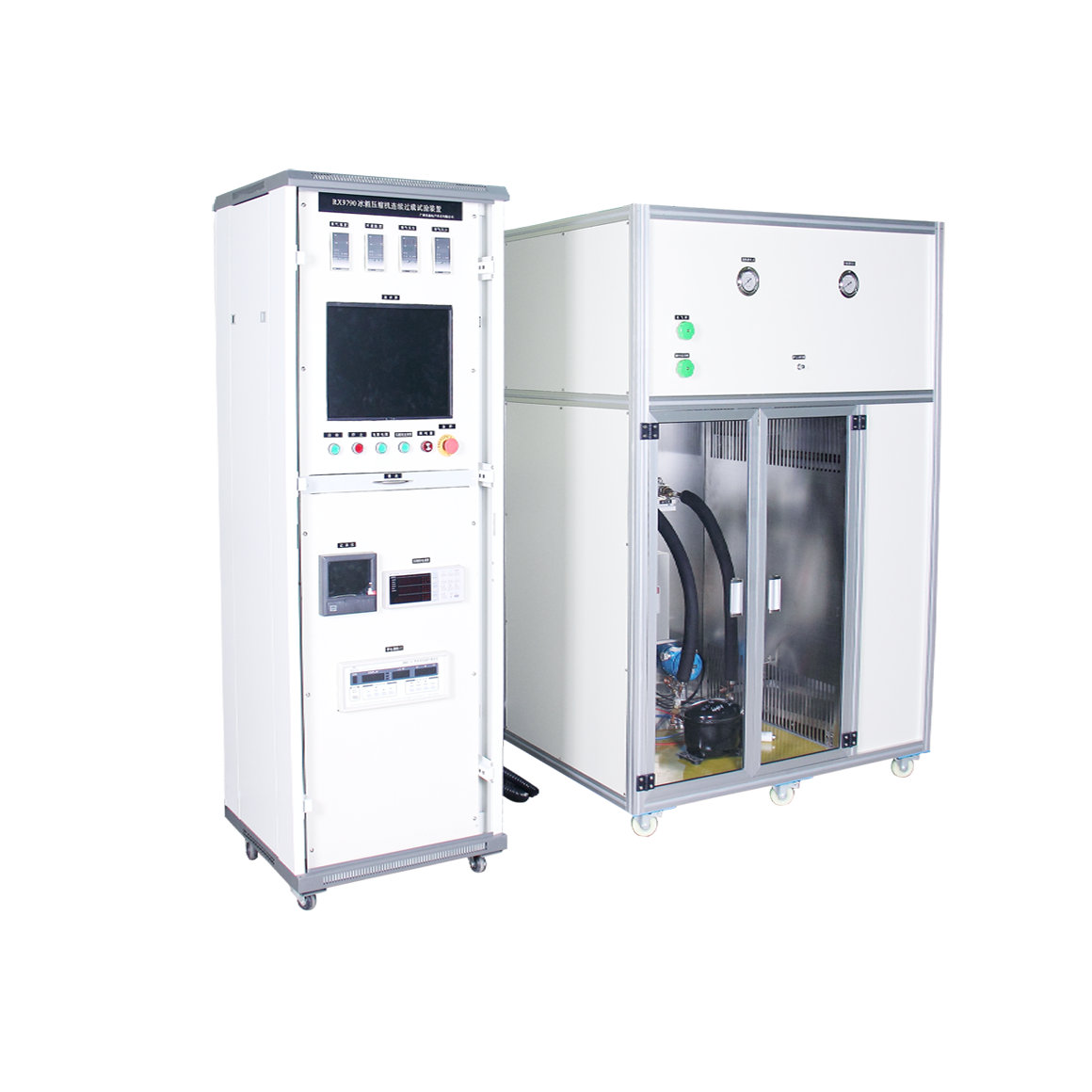

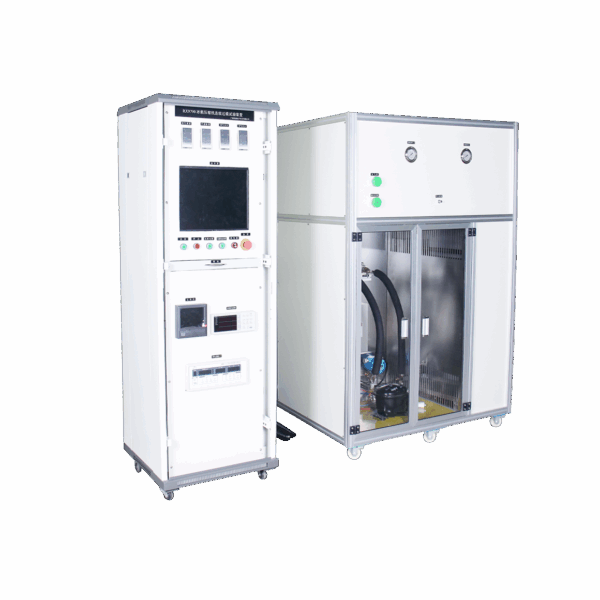

一、Overview
- Technical parameters
1. Test range: 50~300W single phase (50/60Hz)2. Output single phase voltage according to the set test voltage. The compressor frequency (50/60Hz) and test voltage are adjustable during the test; the voltage sampling position is at the compressor terminal.
3. Test items: compressor continuous overload test, final disconnection test
4. Working fluid: R22, R134a, etc.
5. Workstation: single station
6. Working condition control range:
Intake pressure: 0.1~1.5Mpa, manually adjusted needle valve control
Return air temperature: 15~50, control accuracy ±1℃, automatic adjustment
Exhaust pressure: 0.1~5Mpa, control accuracy ±0.02Mpa, automatic adjustment
Evaporation temperature, condensation temperature: calculated from the suction and exhaust pressure test points
Test environment temperature: ring +10~50, control accuracy ±1℃, automatic adjustment
7. Test parameters: compressor voltage/current, suction/exhaust pressure, evaporation temperature, condensation temperature, return air temperature, main and auxiliary coil resistance, winding coil temperature, shell and cover temperature, PTC shell, ambient temperature and other parameters, of which the number of temperature measurement points is 8
Zhipinhui after-sales service
Equipment after-sales policy:
*Equipment warranty period: One Year
*After sales hotline: 4008166687
1. Our company has assembled a team of experienced on-site engineers and senior technicians who can respond promptly to any equipment issues and provide after-sales maintenance.
2. Within one week of the delivery of the new product, our after-sales technical department staff will provide installation and after-sales training for the equipment at the customer’s location based on the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within 1 hour. Within 3-5 hours within the province and 24-48 hours outside the province, the customer will arrive at the scene and determine the handling measures based on the complaint situation, and carry out after-sales maintenance.
4. To better address customers’ difficulties and concerns, our company promises that all maintenance personnel will be on call.
5. Any costs related to product quality during the shelf life will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use by your side or natural environment. The materials and accessories used for repairs will only be charged at cost price.
