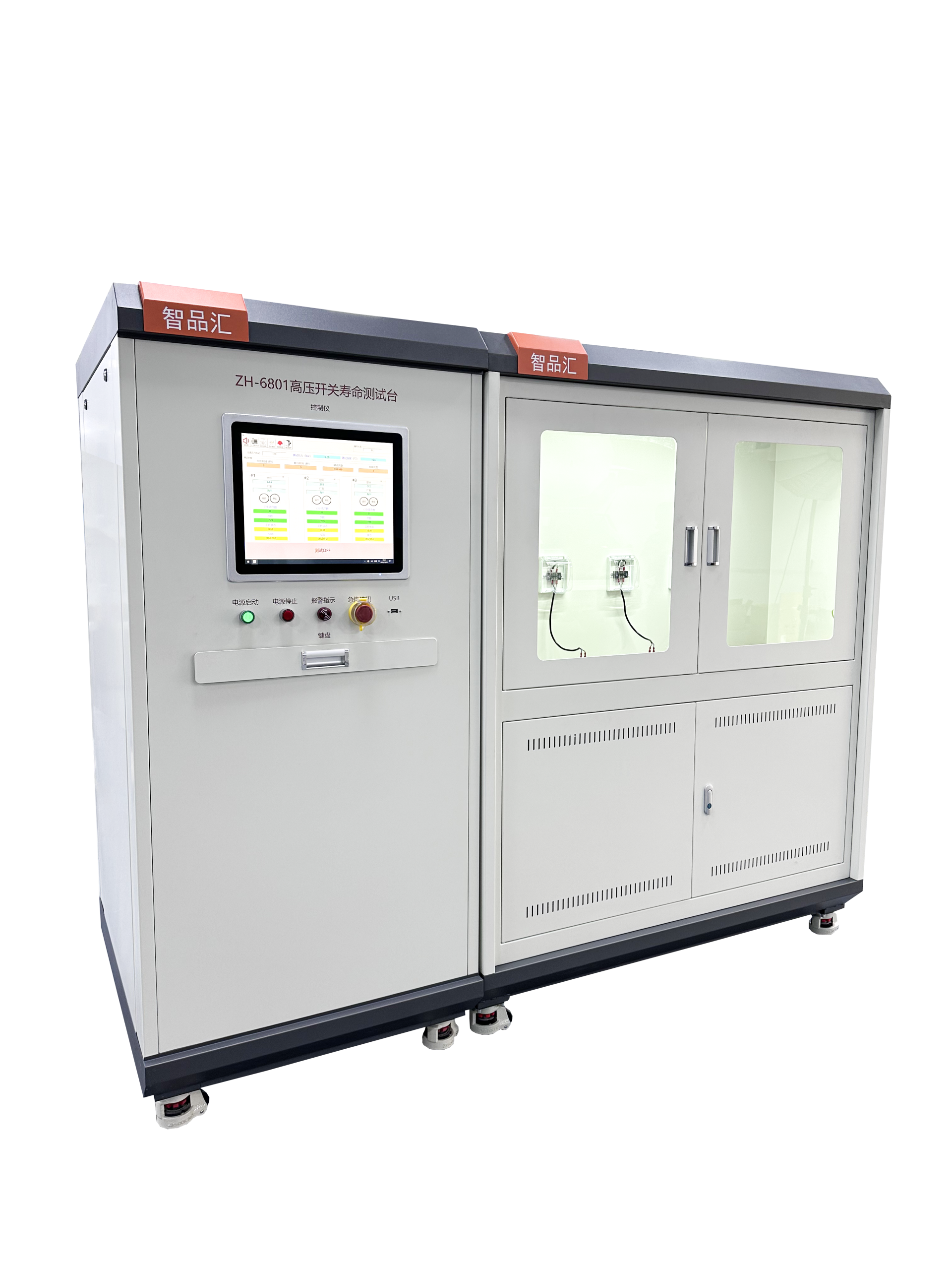

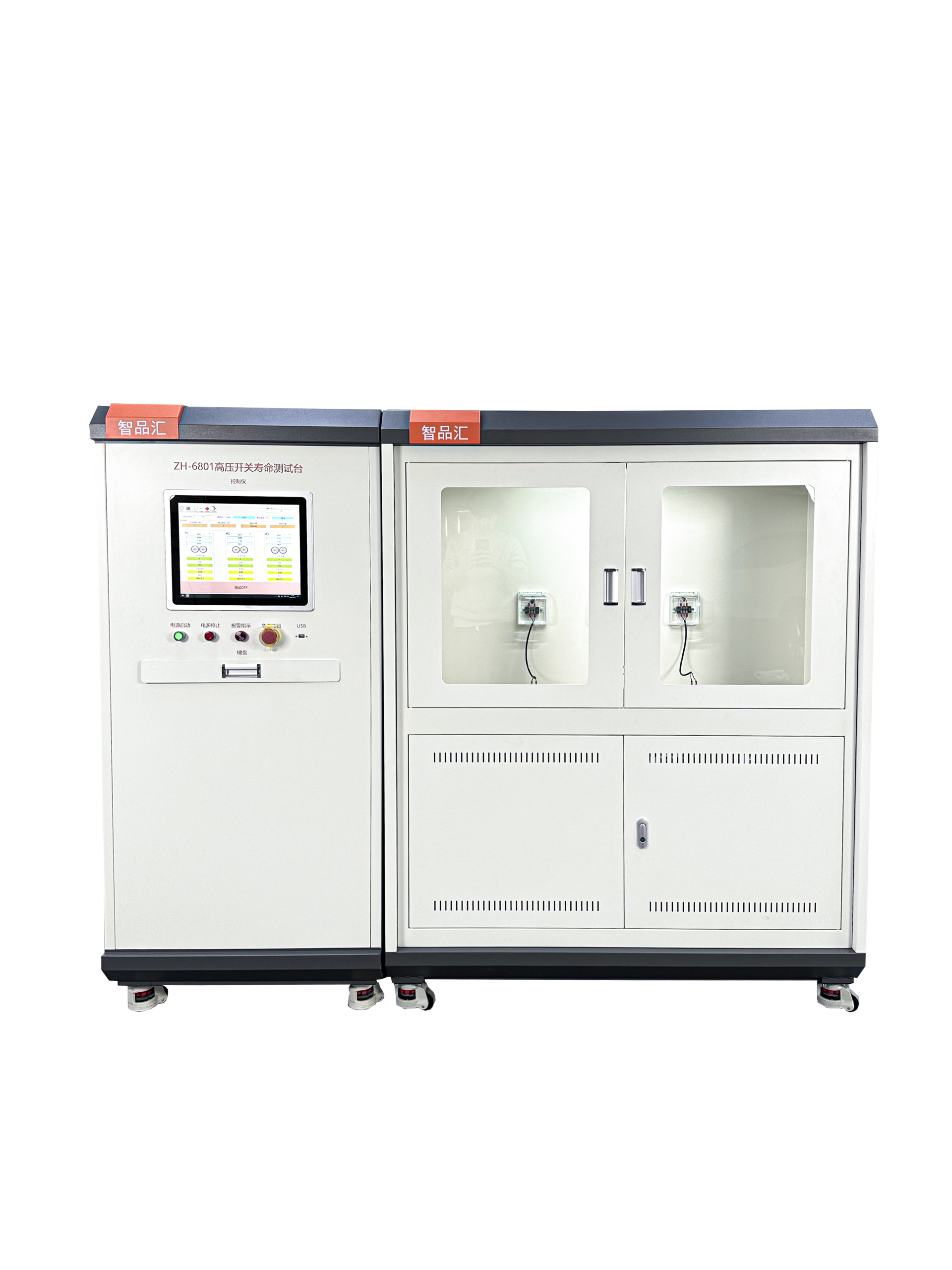

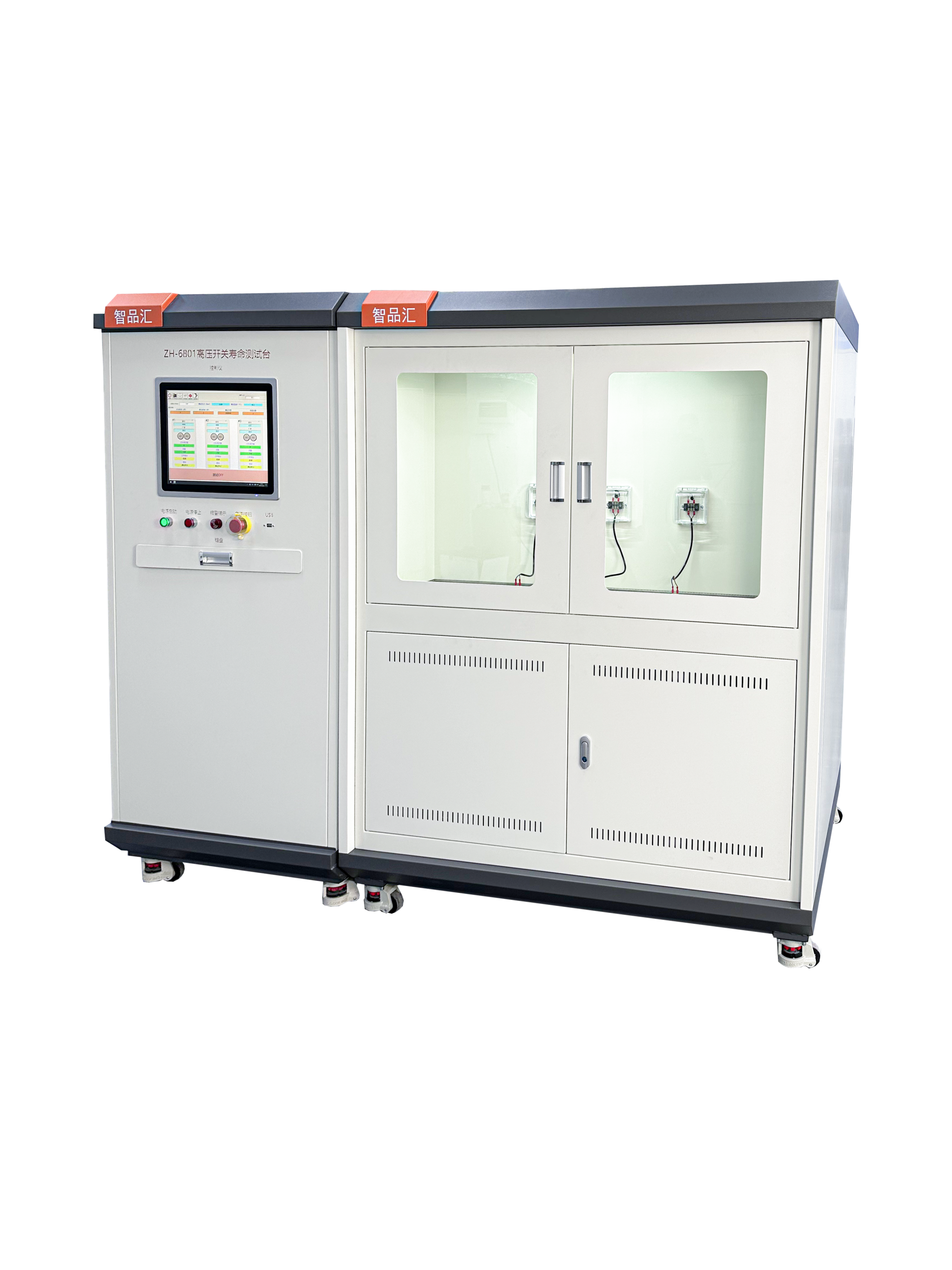

High Voltage Switch Life Test Bench (3 stations)
- Basic requirements: suitable for the durability test of high-voltage switches of water purification equipment;
- Equipment function: meet the technical requirements specified in the standards such as “QB/T 4144 Reverse osmosis Water Purifier for Household and Similar Purposes”.
Beg;
- Test content: Mainly used for the durability test of high-voltage switch of water purification equipment.
Standard test: test water temperature (20±5) °C. Connect the high-voltage switch to the test device, use the counting electric control board to control the on-off of the high-voltage switch through the solenoid valve to control the on-off of the tap water, and record the number of switches, the step-up time of 3s and the step-down time of 3s are a switch, and 100,000 times of switching tests are carried out to monitor whether the high-voltage switch is working normally during the whole life process (whether the water pressure and limit value of the on-off action meet the requirements of the drawing/specification).
Meet the standard test, and reserve the test variable can be adjusted.
The following is an example:
- Technical Parameters
4.1 stations: 3 stations, the same pressure source, using ball valve input;
4.2 Water tank: 1 x 100L water tank, material 304, thickness ≥ 1.2mm;
4.3 Test pressure: 0~0.8MPa;
4.4 Pressure sensor: 0-1.6MPa, brand requirements: GE; Accuracy requirements ±0.2%FS.
4.5 Turn-on time: 0-9999s adjustable.
4.6 Disconnect time: 0-9999s adjustable.
4.7 Number of tests: 0-999999 times adjustable.
4.8 Test the water temperature (20±5)°C, and the water is circulated back to the tank.
- Comprehensive performance of the equipment
5.1 High voltage switch test: life test according to the set on-on time and disconnection time, and the on-off inspection is carried out by PLC
Judgment.
5.2 During the product test, if the test tolerance is reached, the test will be automatically stopped, and the prompt light will be on to remind the operator to proceed
Dispose.
5.3 Console: Using PLC control, the number of tests, opening time and closing time are set on the computer, and the interface displays the cumulative tests
times, and the current running status.
5.4 Safety protection: The water tank has the functions of overflow, leakage and low water level protection.
- Other requirements: The equipment pipe material is made of 304 stainless steel.
