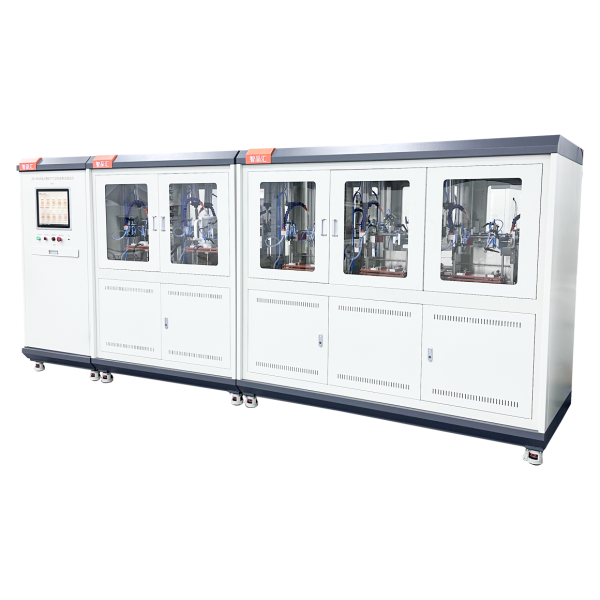

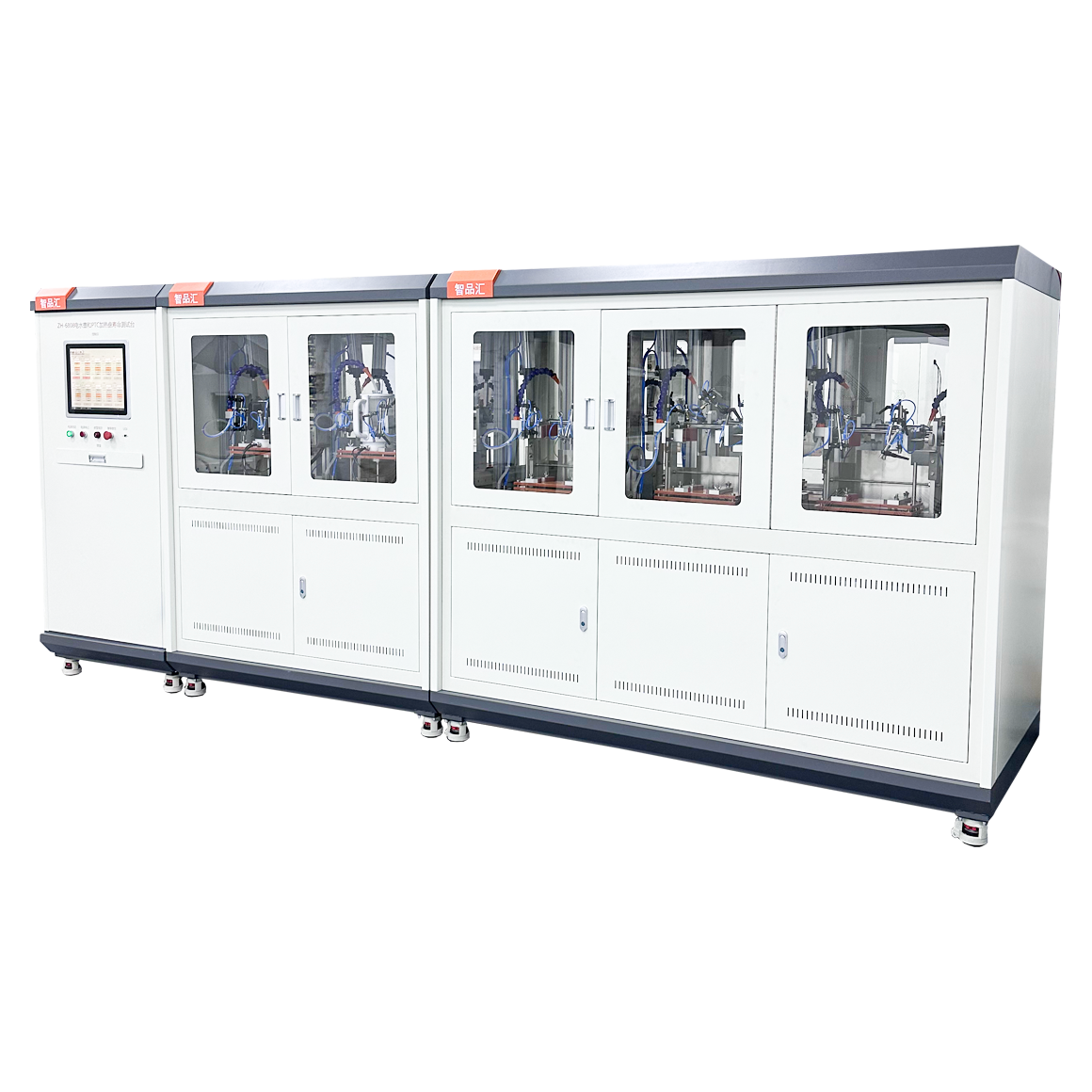

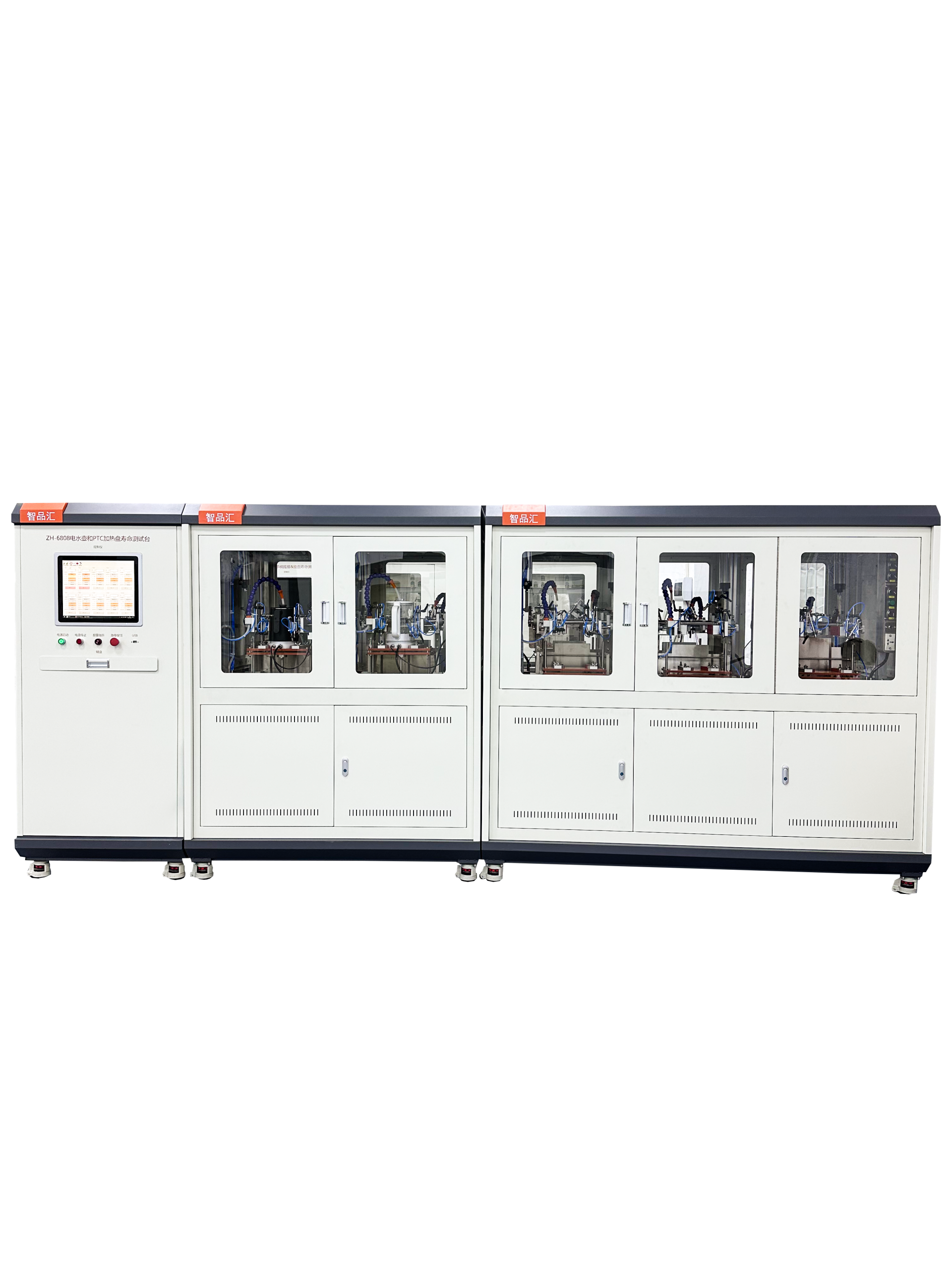

Electric kettle and PTC heating plate life test bench (10 stations)
- Basic requirements: suitable for electric kettle and PTC heating plate life test;
- Equipment function: meet the technical requirements specified in the enterprise standard, national standard and other standards:
- Test content: Mainly used for electric kettle life, anti-dry boiling performance, boiling water dry boiling performance, continuous dry boiling performance test, PTC plus
Hot plate life test;
- Technical Parameters
4.1 Stations: 10 Stations;
4.2 Test time: 0~999S, adjustable;
4.3 Water addition time: 0~999S, adjustable;
4.4 Test times: 0~999999, adjustable times;
4.4 Power acquisition: voltage: 0~300V, current: 0~20A, power: 0~4000W, accuracy 0.5;
4.5 Test temperature: (0-120)°C, accuracy±0.5%F.S.;
4.6 Use room temperature tap water to automatically replenish water into the electric kettle;
4.7 Configure a set of frequency conversion power supply for the frequency conversion power supply of the electric kettle;
4.8 Each station is equipped with a set of button tooling for starting the boiling water function;
4.9 Each station is equipped with a set of pouring mechanism for pouring hot water from the electric kettle;
- Comprehensive performance of the equipment
5.1 Test power supply: Each station is equipped with 1 AC220V waterproof socket to connect to the inverter power supply. The software can automatically turn on and off the power
source, waterproof socket to meet the requirements of the national standard;
5.2? The water supply and power supply of each station can be controlled and switched on the software. Power, current, voltage, number of tests, tests
Time and other test results need to be collected on the software for recording and traceability;
5.3 Each station is equipped with a power meter with an accuracy of 0.5 grades.
5.4 Safety protection: with water and electricity separation design, water leakage and low water level protection functions, etc.;
- Other requirements
6.1 The equipment pipe material is made of stainless steel 304 material;
6.2 Use industrial computer and PLC controller for control;
