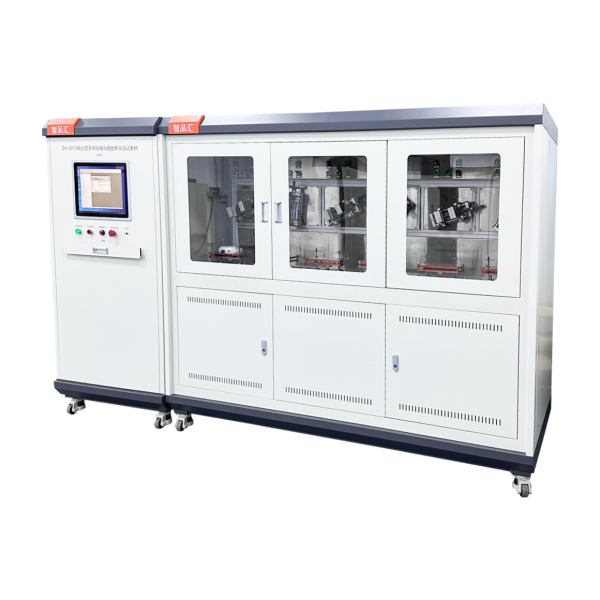

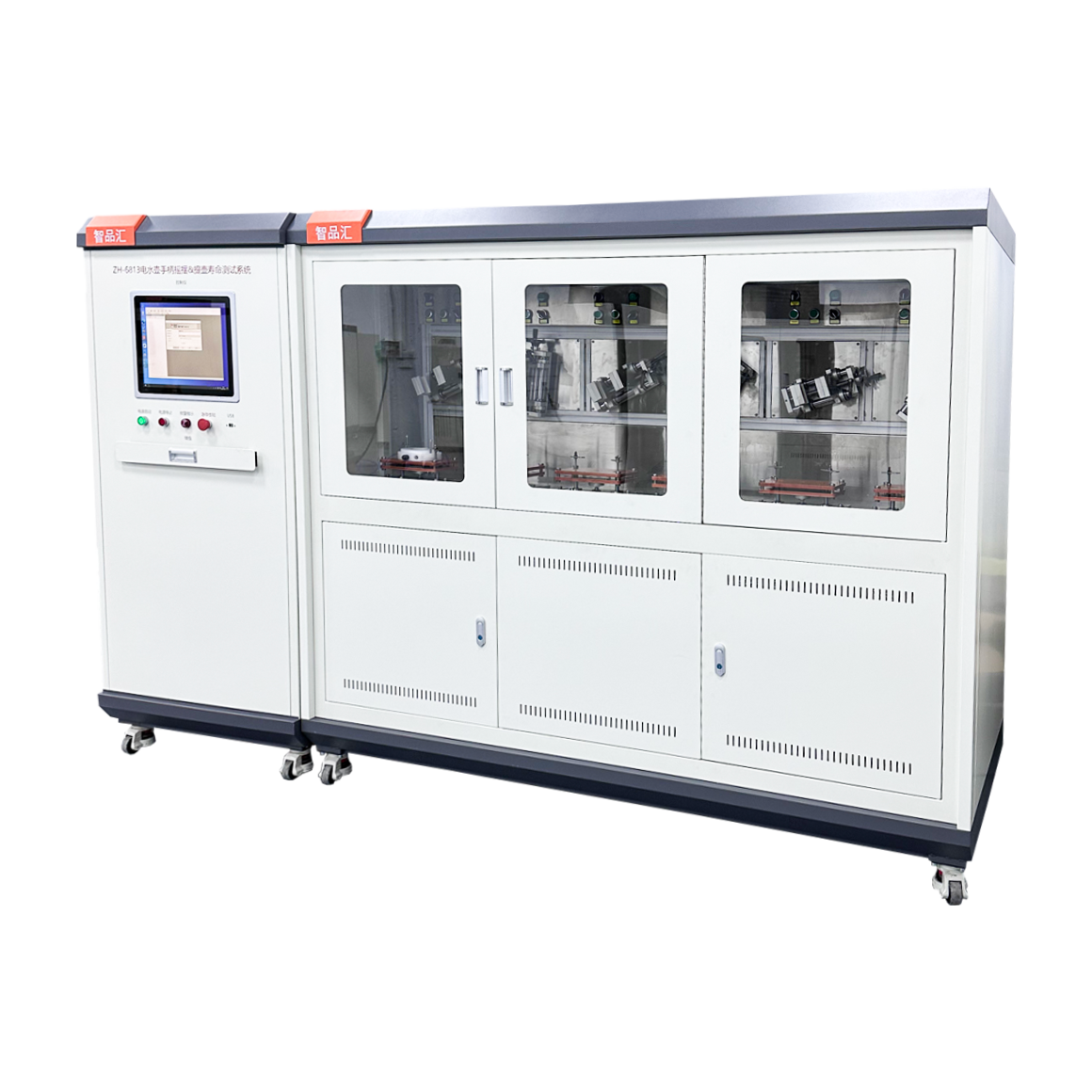

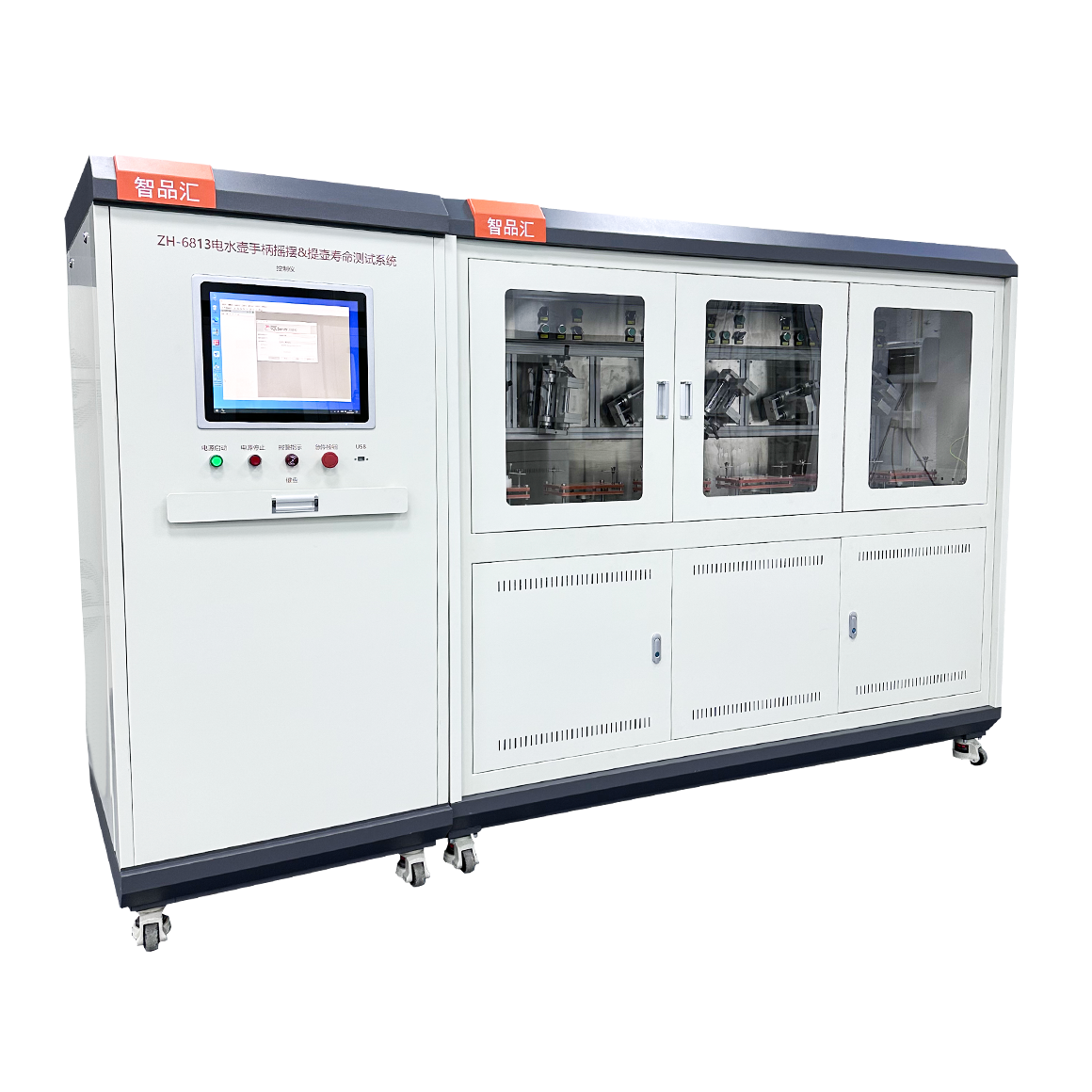

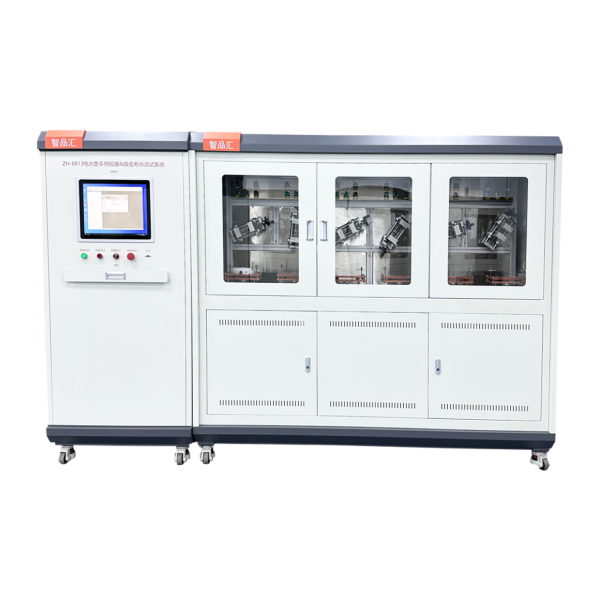

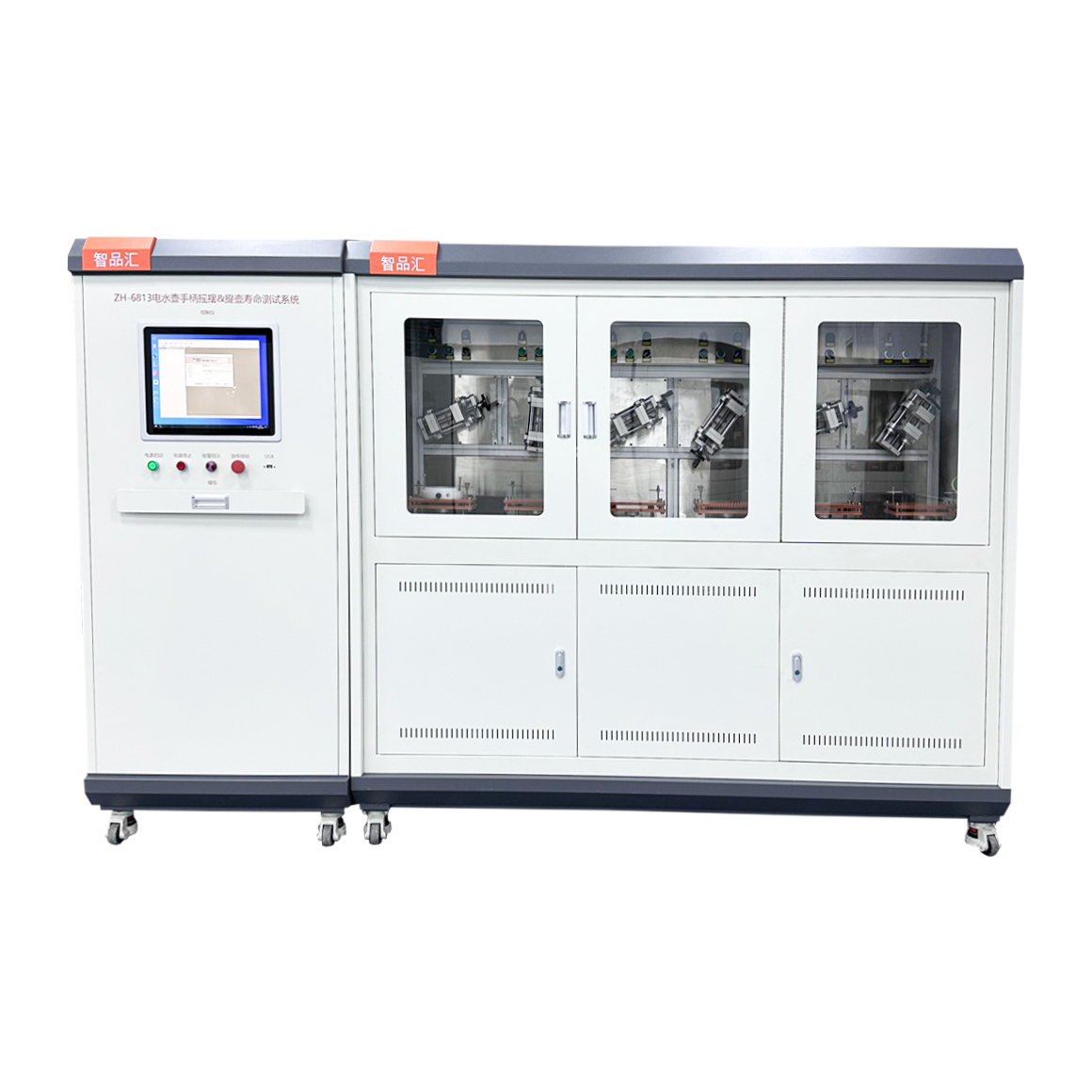

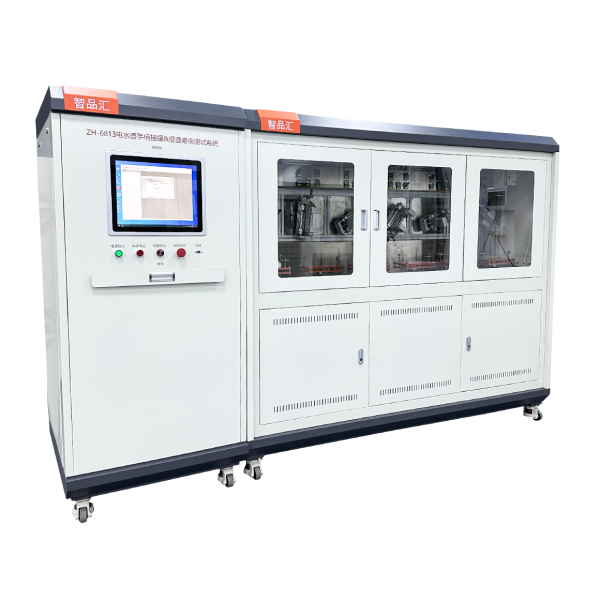

Electric kettle handle swing & kettle life test system

Electric kettle handle swing & kettle life test system (6 stations)

1. Basic requirements: The electric kettle suitable for tea bar machine should be tested for handle swing/pot life;
2. Equipment function: meet the technical requirements specified in the enterprise standard, national standard and other standards:

Meet the requirements of the enterprise standard:

Meet the requirements of the national standard:

3. Test content: It is mainly used for the electric kettle of the tea bar machine for handle swing and pot life test;

Handle swing: meet the requirements of enterprise standards; Pot life: meet the requirements of the national standard, with the coupler tooling adapted to the kettle, Party A provides,

The equipment can meet the needs of the lower coupler accessories (general coupler and product panel combination, with an area of 30*30cm to 50*50cm

between)

4. Technical Parameters

4.1 Stations: 6 stations, you can choose whether to put in or not;

4.2 Test station: by replacing the fixture, two kinds of work can be realized at the same time: left and right swinging, up and down swinging, and lifting the pot

State;

4.3 Swing angle: 0-90°, can be set, 45° up and down or left and right for conventional testing;

4.4 Swing speed: 6°-30°/s±0.5, can be set;

4.5 The total load of a single station shall not exceed 10KG (after three times the load);

4.6 Number of cycles: 1-100000 (optional);

4.7 压缩空气:0.5MPa-0.7MPa;

4.8 Requirements for high and low temperature chambers:

4.8.1 Temperature range: -30°C~100°C;

4.8.2 Specifications of the cavity: length 800mm * width 500mm * height 600mm;

4.8.3 Temperature fluctuation: ±1°C;

4.8.4 Temperature uniformity: ±1°C;

4.8.5 Volume: 240L.

5. Comprehensive performance of the equipment

5.1 High and low temperature test: put the sample into the high and low temperature box and let it stand, without fixation, first in the environment of 70°C±2°C

6 hours; Then it was left in a -20°C±2°C environment for 6 hours, and then manually removed and fixed in a special lifespan 6-station station

, carry out the life test;

5.2 Life test: Load the counterweight of 3 times the water mass of the capacity, seal the lid to prevent the sand from falling out, and place each sample into

On the station→ select the mounting rod corresponding to the handle→ loosen the nut, rotate and adjust the height adjustment tray and the pneumatic manipulator claw,

The height and position of the grabbing are appropriate→ then tighten the nut, open the pneumatic manipulator claw of each station→ place each sample to the pneumatic machine

Close the pneumatic manipulator claw of each station → inside the claw, confirm that the handle of each specimen is grasped→ press the start button on the control cabinet display,

Enter the endurance test;

5.2 Console: Using PLC control, select the test items on the computer display screen and enter the corresponding test parameters, and the interface displays the test

You can query the test results for information such as test information and current running status;

5.5 Safety protection: make safety fences or doors to protect the human body, etc.
