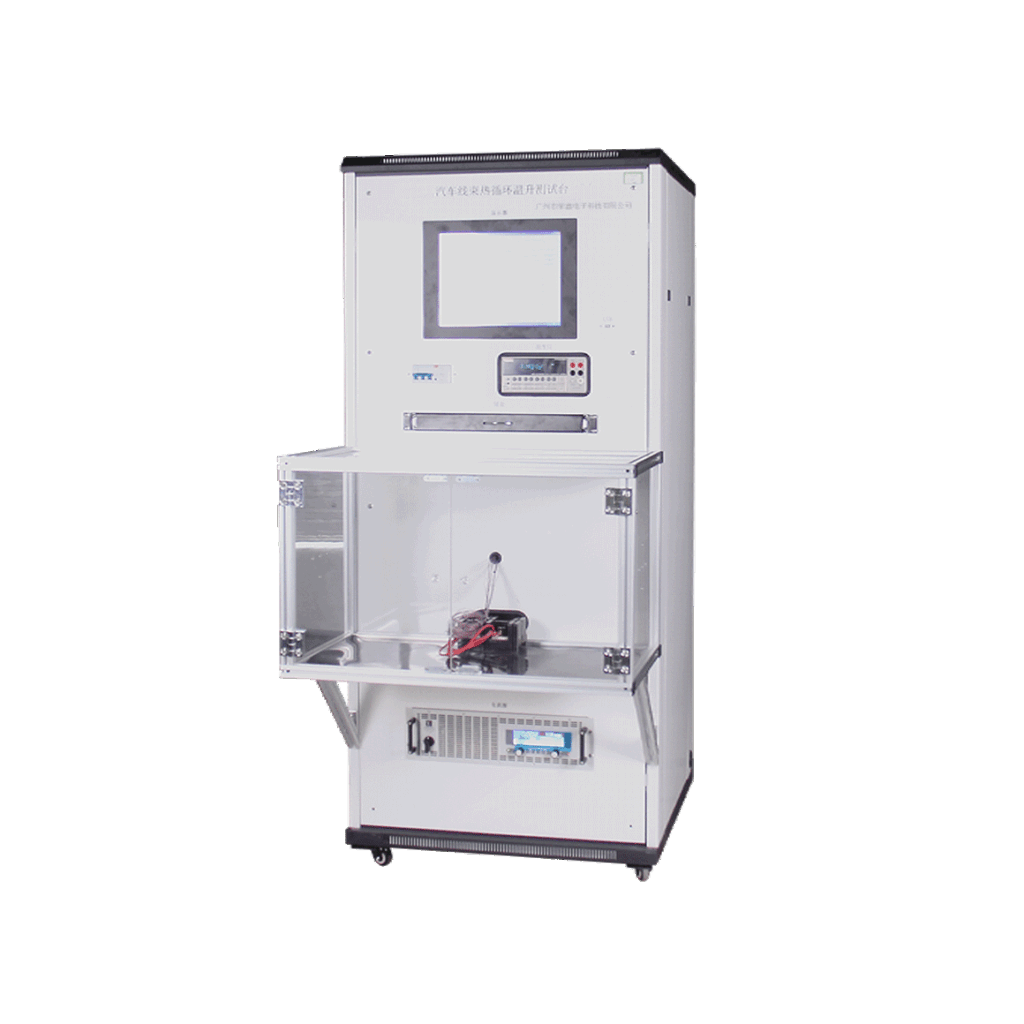

This connector temperature rise test equipment is developed in accordance with current and temperature rise test methods for electronic connectors, including those specified in GB2099, GB7251, GB11022, GB11918, GB13140, GB14048, GB15092, GB15287, GB15288, GB16915, GB17465, GB20234.1, UL310, UL498, UL817, UL941, UL1059, IEC60309, IEC60998, IEC60669, IEC61058, IEC60439, and EIA-364-70, as well as other standards for electrical accessories. It is suitable for ground resistance testing and temperature rise testing of appliances, switches, plugs and sockets, switchgear, busbars, and other products. It features simple operation, accuracy, and reliability, making it widely used in manufacturers, quality inspection departments, and scientific research departments. It can also be used to assess the surface heating of electrical accessories when connected to a load current, and whether the electrode temperature rise meets the requirements of the standard.
- Test Current Source: Current Program Control
Maximum Output Voltage: DC 5V
Output Voltage Display Accuracy: ±(0.2% of reading + 5 digits)
Constant Adjustable Test Current Output: 2 levels, DC 0-20.000-200.00A (adjustable)
Current Display Accuracy: ±(0.5% of reading + 5 digits)
Test Current Stability: ±(1% of set value + 5 digits), Response Time: 1s
Output Power Limit: Not exceeding 1kVA
- Controller: Power On/Off Time: 1-99.99 minutes/hour
On/Off Cycles: 1-9999 cycles, with power-off memory function, automatic shutdown upon reaching the limit
- Temperature Rise Test:
Temperature Measurement Range: 0-260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
